RMGDetectorHit Class Reference

Class to store hits in the Germanium or Scintillator detectors, extends G4VHit. More...

#include <RMGDetectorHit.hh>

Inheritance diagram for RMGDetectorHit:
Inheritance graph
[legend]

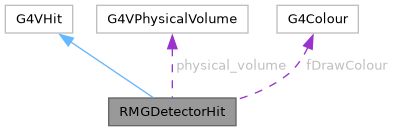

Collaboration diagram for RMGDetectorHit:
Collaboration graph
[legend]

Public Member Functions

 RMGDetectorHit (const RMGDetectorHit &)=default

RMGDetectorHit & operator= (RMGDetectorHit const &)=delete

 RMGDetectorHit (RMGDetectorHit &&)=delete

RMGDetectorHit & operator= (RMGDetectorHit &&)=delete

bool operator== (const RMGDetectorHit &) const

void * operator new (size_t)

void operator delete (void *)

void Print () override

void Draw () override


Public Attributes

int detector_uid = -1
 Remage detector unique identifier (uid) for the volume the hit took place in.

int particle_type = -1
 PDG particle code for the track.

double energy_deposition = -1
 Energy deposited in this step (Geant4 energy units).

double distance_to_surface_prestep = -1
 Distance from the pre-step point to the closest surface of the sensitive volume.

double distance_to_surface_average = -1
 Distance from the step-midpoint to the closest surface of the sensitive volume.

double distance_to_surface_poststep = -1
 Distance from the post-step point to the closest surface of the sensitive volume.

G4ThreeVector global_position_poststep
 Step post-point in world coordinates.

G4ThreeVector global_position_prestep
 Step pre-point in world coordinates.

G4ThreeVector global_position_average
 Step midpoint in world coordinates.

double global_time = -1
 Global time at the pre-step point.

int track_id = -1
 Geant4 track id of the step.

int parent_track_id = -1
 Track id of the parent (0 for primaries).

G4VPhysicalVolume * physical_volume = nullptr
 Physical volume the step took place in.

double velocity_pre = -1
 Velocity at the pre-step point.

double velocity_post = -1
 Velocity at the post-step point.

G4Colour fDrawColour = G4Colour(0, 0, 1)


Detailed Description

Class to store hits in the Germanium or Scintillator detectors, extends G4VHit.

Stores the information on a given hit in the detector:

  • detector ID,
  • particle type,
  • energy deposited,
  • position of the step (both pre and post-step),
  • time,
  • track id and parent track id,
  • distance of the step from the sensitive detector surface,
  • pointer to the G4PhysicalVolume the step took place in. This information can then be saved by the RMGGermaniumOutputScheme , or RMGScintillatorOutputScheme
The documentation for this class was generated from the following files:
