RMGVGenerator Class Reference

Abstract base class for primary generators. More...

#include <RMGVGenerator.hh>

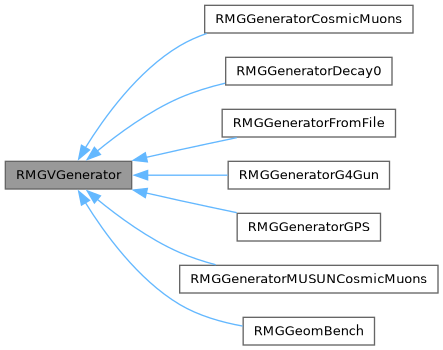

Inheritance diagram for RMGVGenerator:

Public Member Functions
	RMGVGenerator (std::string name)
	RMGVGenerator (RMGVGenerator const &)=delete
RMGVGenerator &	operator= (RMGVGenerator const &)=delete
	RMGVGenerator (RMGVGenerator &&)=delete
RMGVGenerator &	operator= (RMGVGenerator &&)=delete
virtual void	BeginOfRunAction (const G4Run *)
	Called at the beginning of a run.
virtual void	EndOfRunAction (const G4Run *)
	Called at the end of a run.
virtual void	SetParticlePosition (G4ThreeVector vec)=0
	Set the primary vertex position.
virtual void	GeneratePrimaries (G4Event *event)=0
	Generate primary particles for an event.
void	SetReportingFrequency (int freq)
std::string	GetGeneratorName ()

Protected Attributes
std::string	fGeneratorName
std::unique_ptr< G4UImessenger >	fMessenger
int	fReportingFrequency = 1000

Detailed Description

Abstract base class for primary generators.

This class defines the interface for generators that create the primary particle(s) and set their vertex position(s) for a simulation event.

Member Function Documentation

BeginOfRunAction()

virtual void RMGVGenerator::BeginOfRunAction ( const G4Run * )

inlinevirtual

Called at the beginning of a run.

Derived generators can perform any necessary initialization in this method.

Reimplemented in RMGGeneratorCosmicMuons, RMGGeneratorDecay0, RMGGeneratorFromFile, RMGGeneratorMUSUNCosmicMuons, and RMGGeomBench.

EndOfRunAction()

virtual void RMGVGenerator::EndOfRunAction ( const G4Run * )

inlinevirtual

Called at the end of a run.

Derived generators can perform any necessary finalization in this method.

Reimplemented in RMGGeneratorCosmicMuons, RMGGeneratorDecay0, RMGGeneratorFromFile, RMGGeneratorMUSUNCosmicMuons, and RMGGeomBench.

GeneratePrimaries()

virtual void RMGVGenerator::GeneratePrimaries ( G4Event * event )

pure virtual

Generate primary particles for an event.

Derived generators must implement this method to create primary particles and add them to the given G4Event.

Parameters

event

Pointer to the G4Event.

Implemented in RMGGeneratorCosmicMuons, RMGGeneratorDecay0, RMGGeneratorFromFile, RMGGeneratorG4Gun, RMGGeneratorGPS, RMGGeneratorMUSUNCosmicMuons, and RMGGeomBench.

SetParticlePosition()

virtual void RMGVGenerator::SetParticlePosition ( G4ThreeVector vec )

pure virtual

Set the primary vertex position.

This pure virtual method must be implemented by derived classes to set the primary vertex position for the generator.

Parameters

vec	The desired primary vertex position.

Implemented in RMGGeneratorCosmicMuons, RMGGeneratorDecay0, RMGGeneratorFromFile, RMGGeneratorG4Gun, RMGGeneratorGPS, RMGGeneratorMUSUNCosmicMuons, and RMGGeomBench.

---

The documentation for this class was generated from the following file:

• /home/docs/checkouts/readthedocs.org/user_builds/remage/checkouts/latest/include/RMGVGenerator.hh
